Name: Overload Protection 60W LED Power Driver 12 Volt For Indoor Decoration Channel Letter
Brand: LEDCORP
Price: 1 USD

Brand Name : LEDCORP

Model Number : LCP-60-12

Certification : ISO9001 , CE , RoHS

Place of Origin : China

MOQ : 30pcs

Price : Negotiation

Payment Terms : T/T , PayPal

Supply Ability : 10,000pcs per month

Delivery Time : 15 working days

Packaging Details : Folding Boxes Inside Shipping Carton

Input Voltage : AC100-277V

Output Voltage : 12V / 24V

Power : 60W

IP Rating : IP65

Certificate : CE / RoHS

Warranty : 2 years

Contact Now

Overload Protection 60W LED Power Driver 12 Volt For Indoor Decoration / Channel Letter

Product Features:

Application:

Outdoor or indoor Led driver for signage, channel letter, decoration
Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.

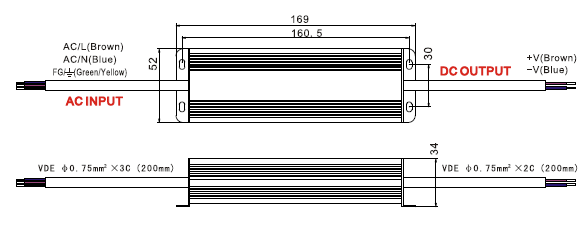

Dimension:

Technical specification:

Part. No	LCP-60-12	LCP-60-24
OUTPUT
DC voltage	12V	24V
Related current	5A	2.5A
Current range	0-5A	0-2.5A
Rated power	60W	60W
Ripple&Noise(max)	150mA	200mA
Voltage tolerance	±2%	±1.4%
INPUT
Setup time	80ms/220VAC
Hold up time	60mS/220VAC
Voltage range	170-250VAc
Frequency range	50-60HZ
Power factor	PF>0.55/220VAC
Efficiency	83%	86%
AC current	0.62A/220VAC
Inrush current	Cold start 50A/220VAC
PROTECTION
Short circuit	Recovers automatically after condition is removed
Overload	Overload protected@115-140% above rating
Over temperature	Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp	—30℃to＋50℃
Working Humidity	20-90% RH non-condensing
Storage Temp	—40℃to＋80℃, 10-99%RH
SAFETY & EMC
Safety standards	CE Mark (LVD), IP67
Withstand voltage	I/P-O/P:1.5KVAC I/P-GND:1.5VAC
EMC test standards	EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006

Packing details:

Product Name	HS code	Packaging unit	Pieces per box	Dimensions LxWxH	Gross weight	Volume
Power supply	94054090	Shipping carton box	30pcs	452026cm	15.3KG	0.0234cbm
