Name: 400W LED Driver Controller Outdoor 12V 24V LED Driver 2 Year Warranty
Brand: LEDCORP
Price: 1 USD

Brand Name : LEDCORP

Model Number : LC-400-12

Certification : ISO9001 , CE , RoHS

Place of Origin : China

MOQ : 30pcs

Price : Negotiation

Payment Terms : T/T , PayPal

Supply Ability : 10,000pcs per month

Delivery Time : 15 working days

Packaging Details : Folding Boxes Inside Shipping Carton

Input Voltage : AC100-277V

Output Voltage : 12V

Power : 400W

IP Rating : IP20

Certificate : CE / RoHS

Warranty : 2 years

Contact Now

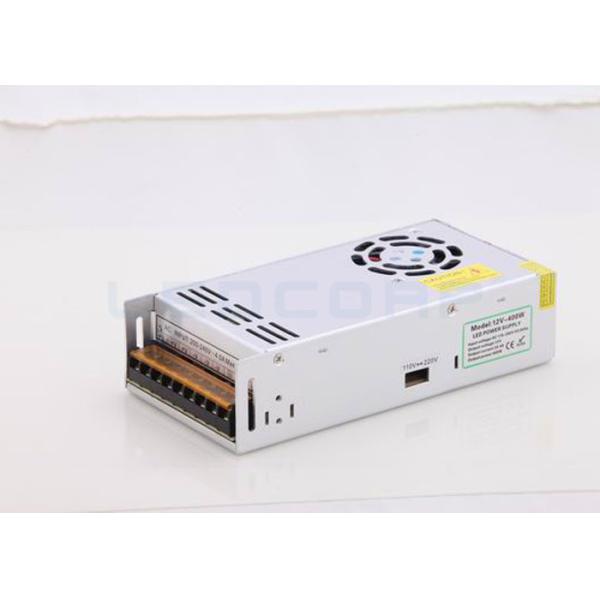

400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty

Product Features:

Application:

Outdoor or indoor Led driver for signage, channel letter, decoration
Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.

Technical specification:

Part. No	LCP-400-12
OUTPUT
DC voltage	12V
Related current	33.3A
Current range	0-33.3A
Rated power	400W
Ripple&Noise(max)	150mA
Voltage tolerance	±0.1%
INPUT
Setup time	200ms/220VAC
Hold up time	20mS/220VAC
Voltage range	170-250VAc
Frequency range	50-60HZ
Power factor	PF>0.55/220VAC
Efficiency	82%
Input current	4.7A/170V
Input current	3.0A/260V
PROTECTION
Short circuit	Recovers automatically after condition is removed
Overload	Overload protected@115-140% above rating
Over temperature	Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp	—30℃to＋50℃
Working Humidity	20-90% RH non-condensing
Storage Temp	—40℃to＋80℃, 10-99%RH
SAFETY & EMC
Safety standards	CE Mark (LVD), IP20
Withstand voltage	I/P-O/P:1.5KVAC I/P-GND:1.5VAC
EMC test standards	EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006

Dimension: 200*100*50mm

Weight: 0.7kg/pcs

Packing details:

Product Name	HS code	Packaging unit	Pieces per box	Dimensions LxWxH	Gross weight	Volume
Power supply	94054090	Shipping carton box	30pcs	452026cm	21KG	0.0234cbm
